: Robs 1967 FJ40  ( 26114 )
Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« : August 22, 2010, 01:52:58 PM »

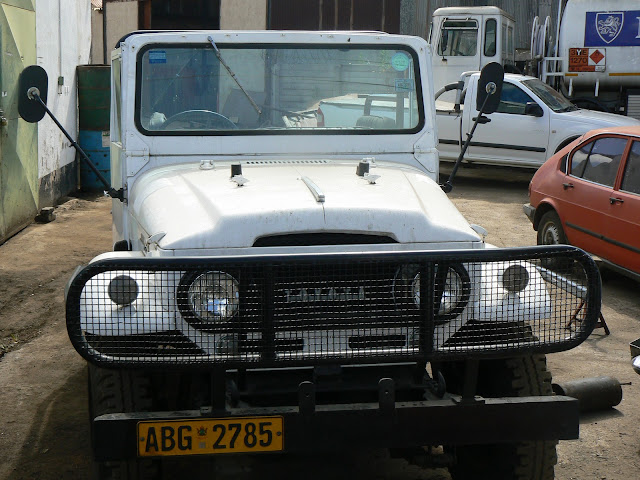

How she looked when I bought her.


Previous owner must of been a mobile plumber. All this kak to come off asap :o

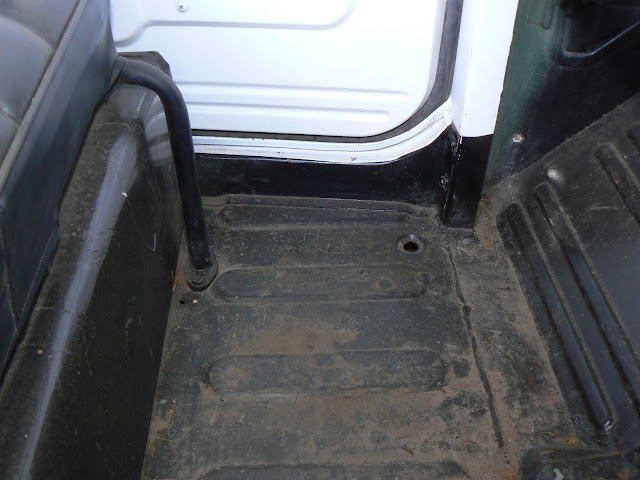

No Rust!
« : August 22, 2010, 01:56:59 PM Rob Wright »

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #1 : August 22, 2010, 02:01:55 PM »


Bull Bar off.

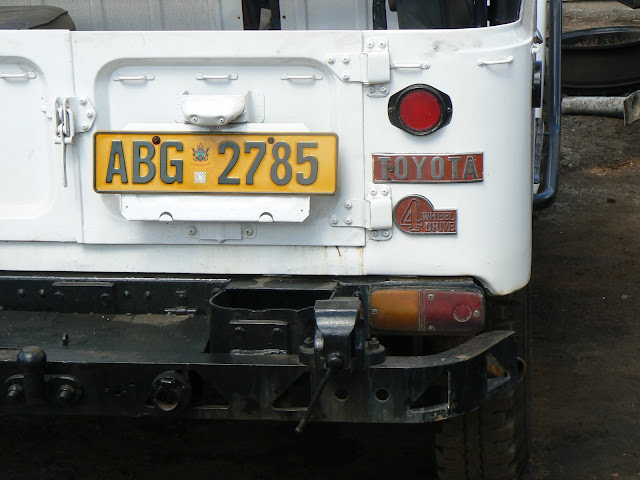

Crusty bumper and vice off(free to a good home) ;D


Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #2 : August 22, 2010, 02:09:49 PM »






Brake valve for trailer ,hyd pipe plumbed into rear cross member ,to be removed at a later stage .

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #3 : August 22, 2010, 02:39:21 PM »

Very nice  ;D Flip the bezel and sort those rear lights  :drinks:

Theo Marx
All Bezels
Hero Member
*****
Offline Offline

: 1709



« #4 : August 22, 2010, 05:28:53 PM »

I am green  :o

11/83  UZJ 42 LX with some goodies :  Olive
06/99  HZJ 75 RV

Shaun Cullen
Classic Bezels
Sr. Member
****
Offline Offline

: 278



« #5 : August 23, 2010, 12:52:53 PM »

Very nice. That indicator lever made of metal?

That rear bumper looks like it belonged to Oom Guy Boardman  :o
« : August 23, 2010, 12:55:21 PM Shaun Cullen »

Enjoy Cruisers - hate Cruiser Politics

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #6 : September 13, 2010, 02:09:59 PM »

 Yes that indicator lever made out of metal .and chromed .not much in the way of Plastic
  on this old girl.


Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #7 : September 13, 2010, 02:29:24 PM »

 Bought an Alternator and busy making up new pulley to suit and adjusting bracket. Had
 some crusty old thing  on before with wrong pulley and not ligning up ,was the Rev limiter .
 Rev it a bit much and off the belt would come .
 Removed front sprongs ,stripped and sanding down blades ,going to remove 2 blades ,will
 paint ,grease and reassemble with new shackle bushes . :)



Adolf Hüster
All Bezels
Hero Member
*****
Offline Offline

: 1076


Home in Africa!


« #8 : September 13, 2010, 04:08:08 PM »

Rob, do not alter the rear lights yet. Might get lucky in the US. Your lights seem to be original and were used only on trucks for certain countries. Vic, my contact, said he already saw them, but must search again!  ::)

Adolf
My Collection!
FJ40 2F 1982 / FJ43 V8 1975 / FJ45 2F 1978
FJ55 2F 1980 Barn Doors / FJ55 2F 1979 Tailgate
BJ74 13BT 1988 / FJ62 4.5EFI 1988
For Trips: 100 VX TD 2001 / 78 1HZ (soon 1HDT) Troopy 2011

Keith Richardson
All Bezels
Hero Member
*****
Offline Offline

: 824


40's Rule


« #9 : September 14, 2010, 05:27:58 AM »

what is that change over valve on the gearbox hump ???

Is it for the PTO

FJ40-1979 TARSUXGP
FZJ105-1999-TOY100GP
FJ40-1983-LX-ELLEX
FJ Cruiser 2011 BM81KT-GP
KTM 1190 Adv
Ducati Multistrada 1200
KTM 990 SMT
MV Agusta Brutale 920
Kawasaki Z1000J ELR
Honda CB900F

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #10 : September 14, 2010, 08:03:28 AM »

 Thanks Adolf for that update on lights will hold fire on cutting ,I enquired from roadworthy
 people here ,they dont accept 1 light doing all three fuctions ,Tail and Brake have to be Red and Indicator Orange ,so this maybe explains why some of these had my style of light .
Keith ,That Valve was for trailer brakes ,Had a signal line from brake master cyl ,and looking at valve ,at some stage looks like it had a lever mounted on that splined shaft ,was still all plumbed in when i bought it ,even the line to tow hitch ,one obviously had to bleed the trailer brakes every time one connected up .Someone suggested this cruiser was prolly a milatary spec .as it has a water tank and extra fuel tank too .

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #11 : November 02, 2010, 05:43:35 PM »

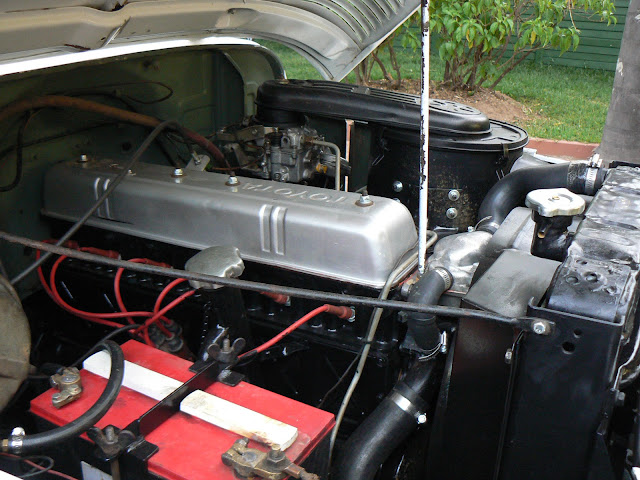

Engine tidied up a bit ,New radiator and all hoses ,and painted various bits .

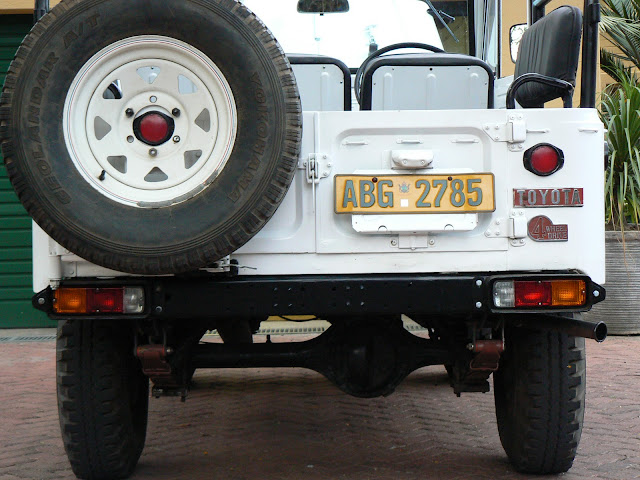

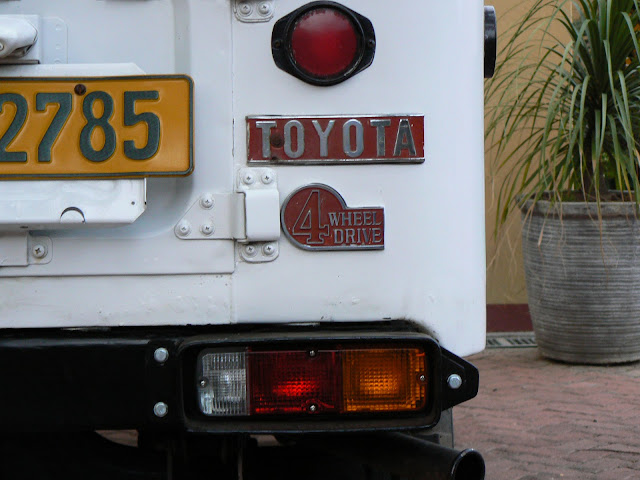

 New tail lights fitted ,Home made Gaurds fitted .Bumperetts still to be repaired and fitted .
 Need to wire up reverse lights ,This box no reverse light switch ,goin to have make a plan .any easy suggestions .

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #12 : November 02, 2010, 06:56:48 PM »

Looking good, still a pity you had to fit the newer lights. Is it not possible to fit a newer top plate on the gearbox? I think that is where the switch is located.

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #13 : November 02, 2010, 08:10:37 PM »

 Thanks JT .Will try to find a newer model top cover remember this is the old 3 speed box .did the later 3 speed boxes come out with reverse switch .the law comes into affect here 1 Dec .about reverse lights, ( maybe the reasoning is that one must be able to see when one has to reverse out of the pothole when its too big to negotiate ) ;D we also not allowed tinted windows either in Dec . >:(

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #14 : November 02, 2010, 08:38:05 PM »

Ok 3speed, I would do my best to drill and tap the box in the right place to activate the switch, will have a look and see if I can find anything
