: Robs BJ 42 Rebuild .  ( 59780 )
Adolf Hüster
All Bezels
Hero Member
*****
Offline Offline

: 1076


Home in Africa!


« #15 : February 06, 2011, 06:47:31 PM »

Fek, that is nice!  :o  8)  Will do that with my cruisers when to old and tired to drive them.  :jt:
Great idea!  >:D

Adolf
My Collection!
FJ40 2F 1982 / FJ43 V8 1975 / FJ45 2F 1978
FJ55 2F 1980 Barn Doors / FJ55 2F 1979 Tailgate
BJ74 13BT 1988 / FJ62 4.5EFI 1988
For Trips: 100 VX TD 2001 / 78 1HZ (soon 1HDT) Troopy 2011

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #16 : February 06, 2011, 06:53:46 PM »

Been thinking about doing that for some time, for the real Cruiser addict, need to start finding donor vehicles  :D

Keith Richardson
All Bezels
Hero Member
*****
Offline Offline

: 824


40's Rule


« #17 : February 07, 2011, 12:35:17 PM »

Rob - I have your ARB Locker

FJ40-1979 TARSUXGP
FZJ105-1999-TOY100GP
FJ40-1983-LX-ELLEX
FJ Cruiser 2011 BM81KT-GP
KTM 1190 Adv
Ducati Multistrada 1200
KTM 990 SMT
MV Agusta Brutale 920
Kawasaki Z1000J ELR
Honda CB900F

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #18 : February 08, 2011, 08:00:27 AM »

 Thanks Keith .
 Much Appreciated .could you drop off at Adolf when you in that direction ,and i will make a plan to collect from him . :drinks:


Mark Seele
All Bezels
Sr. Member
****
Offline Offline

: 361



« #19 : February 08, 2011, 02:56:16 PM »

when he is back in town  :jt:

2006 LC 79 EFI
2000 LC 100 VX TD
1982 LC FJ 40

Andre Bosch
All Bezels
Jr. Member
**
Offline Offline

: 72



« #20 : February 10, 2011, 03:04:54 PM »

why, is he 'out of town' ?

maybe here?


'95 FZJ80 RV

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #21 : June 29, 2012, 01:18:08 PM »

 Took Chassis for Sandblasting .Needs New front Crossmember.  rear bumper (crossmember to be straightened )  Big Job to remove all these rivets . :'(

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #22 : June 29, 2012, 01:27:26 PM »

I'm getting quite good at it

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #23 : June 29, 2012, 02:30:03 PM »

 Lotsa Hammer Rash .Seems the only way to remove is to grind head off and beat and beat
 with a good punch .Found HT 7/16 UNF bolts with a bit of a shank work briiliantly ,they go in nice and tight .10mm bolts too loose .and going to always be coming loose .

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #24 : June 29, 2012, 03:48:54 PM »

I do the following:

- Grind heads.
- Centre punch.
- Drill 8mm bit, but not all the way through.
- 4lb hammer and 6mm punch.

Good info on the bolts, thanks  :drinks:

Keith Richardson
All Bezels
Hero Member
*****
Offline Offline

: 824


40's Rule


« #25 : July 02, 2012, 11:28:14 AM »

why, is he 'out of town' ?

maybe here?



Hi Andre

did you say Hi to Dave and Ric for us

FJ40-1979 TARSUXGP
FZJ105-1999-TOY100GP
FJ40-1983-LX-ELLEX
FJ Cruiser 2011 BM81KT-GP
KTM 1190 Adv
Ducati Multistrada 1200
KTM 990 SMT
MV Agusta Brutale 920
Kawasaki Z1000J ELR
Honda CB900F

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #26 : July 27, 2012, 09:24:54 PM »

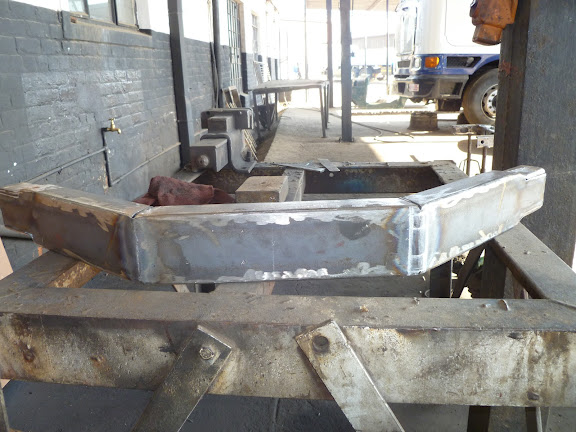

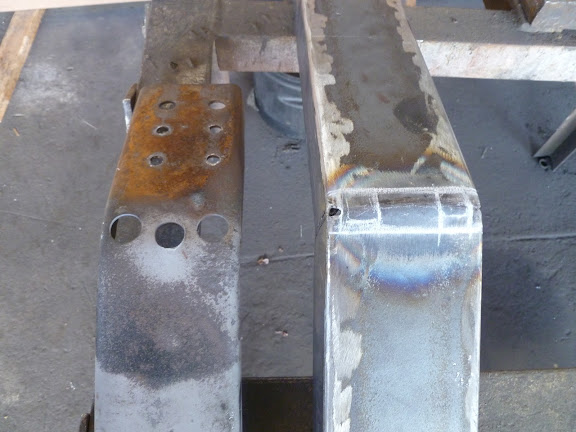

 Standard configuration .My Rear Bumper was bent outwards,from flimsy triangulation member .

 Fabricating a new member out of 100x 50 channel 6mm thick.Original members only 3mm thick






These holes just weaken this .




 looked on a 45 series ,they use the spare wheel mount as an added support. member .we dont have that luxury of space.

Jonathan Tee
Administrator
Hero Member
*****
Offline Offline

: 2072


V8 because some say "2 heads are better than one"


« #27 : July 27, 2012, 09:40:00 PM »

Looks grand Rob,  :drinks: on working out the Picasa thing  :D

Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #28 : July 27, 2012, 09:40:41 PM »


 Front Shackle Bushes Welded Into Chassis .
 Made up this round bar dolly to align bushes,used same dolly to align rear bushes
 on rear of chassis whilst straightening rear rails .worked a treat ,rear were way out from chassis rails being pulled together from rear bumper being pulled outwards





 Removed old cracked front crossmember and fitted good secondhand ,Used 7/16 UNF HT bolts with about 10mm of shank ,so goes in nice and tight .




Rob Wright
Classic Bezels
Sr. Member
****
Offline Offline

: 313


« #29 : July 27, 2012, 09:47:33 PM »

 Thanks Jonathan .Just did it on my Old Laptop . :-[
 Not sure how much these chassis need to flex and if that stronger rear member going to inhibit  it flexing and cause other issues ,but cant believe that it flexes too much at the rear .
 Time will tell . :)
